RUCKUS T670sn Outdoor Access Point Features
Outdoor venues like stadiums and arenas present some of the most demanding wireless challenges due to high client density. The RUCKUS® T670sn access point (AP), powered by the latest Wi-Fi 7 standard combined with RUCKUS unique patented technologies, delivers multi-gigabit Wi-Fi to meet the ever-growing demand for top-tier performance. Designed for durability, the T670sn is IP-67 rated to withstand the harsh conditions of outdoor deployments.
T670sn Programmable Sector Antenna
The T670sn programmable sector antenna enhances outdoor Wi-Fi AP deployments by offering flexible, software-defined coverage that adapts to different environments. It can be switched between narrow beam for high-density areas and wide beam for broader coverage, offering several key benefits.
This dynamic control minimizes interference while maximizing signal strength and data rates, leading to better connectivity and performance in targeted areas. Additionally, the ability to modify coverage patterns remotely eliminates the need for physical adjustments, making it ideal for scenarios with changing network demands, such as seasonal events or infrastructure expansions.
The RUCKUS T670sn is a high density, high throughput, low latency tri-band AI-driven Wi-Fi 7 outdoor AP engineered to meet the demands of the most challenging environments, providing unprecedented performance in high-density settings such as stadiums, public venues, and smart cities.
The RUCKUS T670sn is driven by RUCKUS AI™, a cloud service for network assurance and business intelligence to enhance Wi-Fi 7 network resilience, and enhanced by the programmable sector antenna system built into the AP. These superior technologies enable:
The RUCKUS T670sn supports two Radio configurations to support different regulatory domains:
T670sn Programmable Sector Antenna
The T670sn programmable sector antenna enhances outdoor Wi-Fi AP deployments by offering flexible, software-defined coverage that adapts to different environments. It can be switched between narrow beam for high-density areas and wide beam for broader coverage, offering several key benefits.
- Better Deployment Flexibility
- Dynamic Adaptation for Changing Needs
- Simplified Network Planning
This dynamic control minimizes interference while maximizing signal strength and data rates, leading to better connectivity and performance in targeted areas. Additionally, the ability to modify coverage patterns remotely eliminates the need for physical adjustments, making it ideal for scenarios with changing network demands, such as seasonal events or infrastructure expansions.
The RUCKUS T670sn is a high density, high throughput, low latency tri-band AI-driven Wi-Fi 7 outdoor AP engineered to meet the demands of the most challenging environments, providing unprecedented performance in high-density settings such as stadiums, public venues, and smart cities.
The RUCKUS T670sn is driven by RUCKUS AI™, a cloud service for network assurance and business intelligence to enhance Wi-Fi 7 network resilience, and enhanced by the programmable sector antenna system built into the AP. These superior technologies enable:
- Superior Throughput and Capacity
- Reduced Latency
- Adaptive Resilience
The RUCKUS T670sn supports two Radio configurations to support different regulatory domains:
- Tri-band (2.4 GHz +5 GHz +6 GHz) for the US and Canada: This configuration supports Wi-Fi 7 simultaneously on 2.4GHz, 5GHz, and 6GHz frequency bands, with a maximum physical data rate of 9.336 Gbps.
- Dual-band (2+5) for global use: This setup offers Wi-Fi 7 simultaneously on both 2.4GHz and 5GHz frequency bands, with a maximum physical data rate of 6.454 Gbps.
Specifications for RUCKUS T670sn Outdoor Access Point

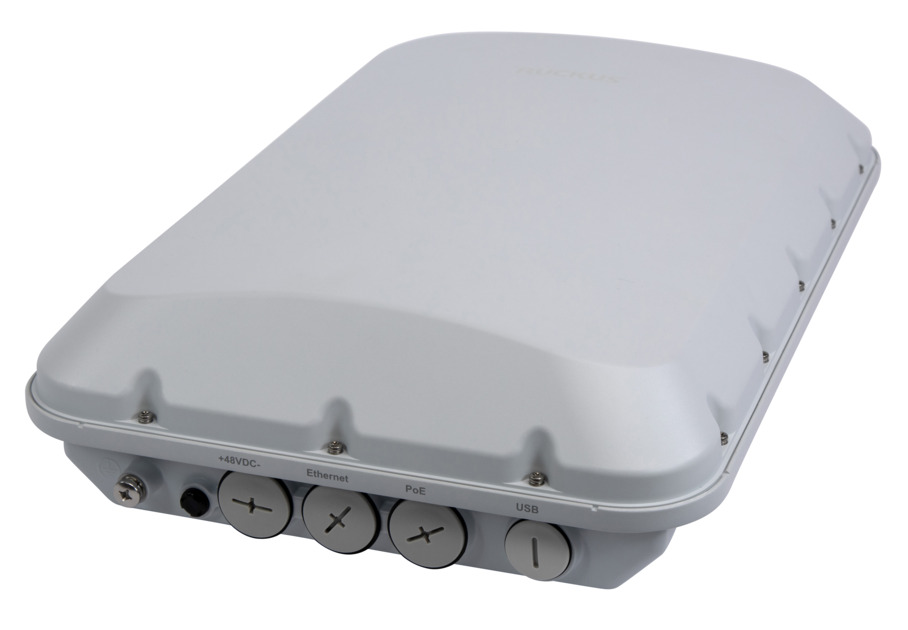

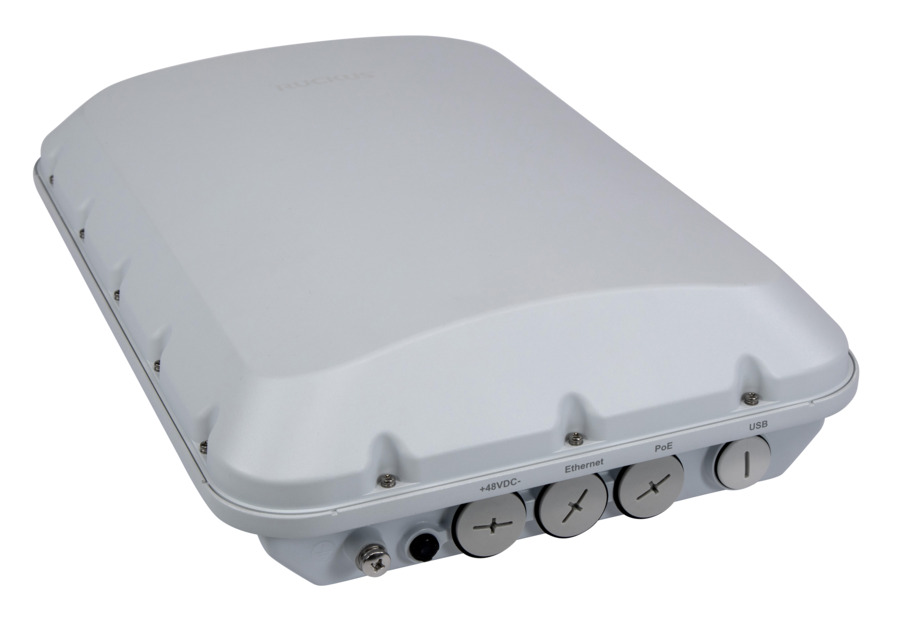

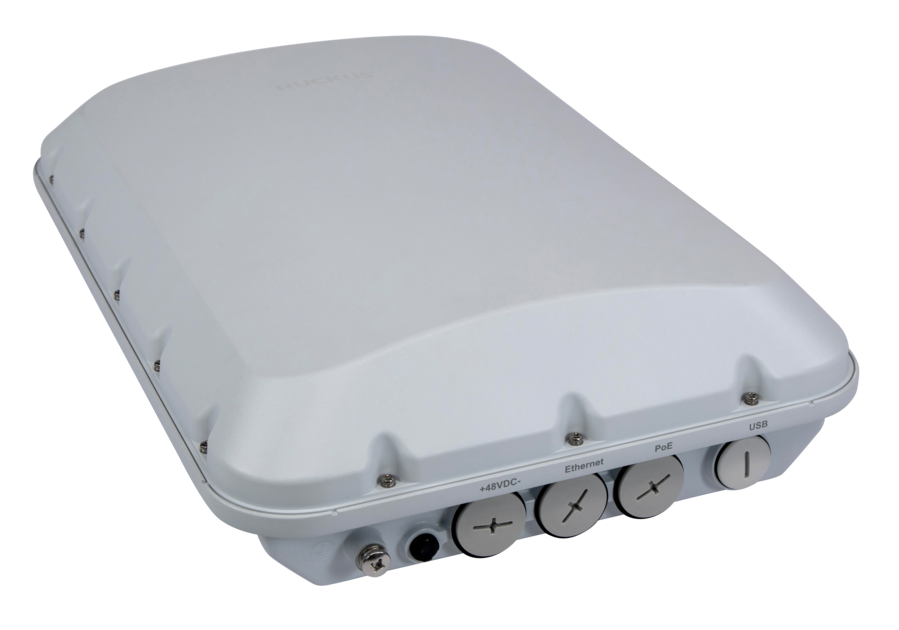

![T670SN | RUCKUS T670sn Outdoor Access Point [RUCKUS T670SN - 0L5A2608]](https://www.ruckusnetworks.com/globalassets/digizuite/1015743-ruckus-t670sn-0l5a2608.png/medium?mediaformatid=50103)
製品分類
販売地域 | アジア | オーストラリア / ニュージーランド | EMEA | ラテンアメリカ | 北米 |
製品タイプ | 屋外アクセスポイント |
製品ブランド | RUCKUS® |
一般仕様
アンテナ・ゲイン | 最大 12.8 dBi |
ChannelFly | 有り |
同時利用ユーザー | 768 |
コントローラー・サポート | RUCKUS One™ | RUCKUS SmartZone | RUCKUS Unleashed™ |
イーサネット・ポート | 1 x 1 / 2.5 / 5 GbE | 1 x 1 GbE |
無線の数 | トライラジオ |
PD-MRC | 有り |
2.4 GHz 時の PHY レート (最大) | 689 Mb/s |
5 GHz 時の PHY レート (最大) | 5765 Mb/s |
6 GHz 時の PHY レート (最大) | 5765 Mb/s |
Combined Max PHY Rate | 9340 Mb/s |
ラジオチェーンおよびストリーム | 2x2:2 |
2.4 GHz における Rx 感度 | -97 dBm |
5 GHz における Rx 感度 | -100 dBm |
6 GHz における Rx 感度 | -96 dBm |
SmartMesh | 有り |
ベニューの種類 | ホスピタリティ | 公共ベニュー | 小売業 | 交通輸送 |
ベニューの種類(下位分類) | 港湾 | 大規模な公共の会場 | 屋外リゾート・スペース | 中継基地局 |
サポートされている Wi-Fi バンド | 2.4 GHz | 5 GHz | 6 GHz |
Wi-Fi 生成 | Wi-Fi 7 |
Wi-Fi インターフェース規格 | IEEE 802.11a/b/g/n/ac/ax/be |
環境仕様
運用温度 | -40 °C ~ +65 °C (-40 °F ~ +149 °F) |
