RUCKUS R850 Indoor Access Point

Ultra High-Performance Wi-Fi 6 8x8:8 Indoor Access Point with 5.9 Gbps max rate and Embedded IoT

RUCKUS R850 Indoor Access Point Features

The R850 is based on the latest Wi-Fi standard, Wi-Fi 6 and bridges the performance gap from ‘gigabit’ Wi-Fi to ‘multi-gigabit’ Wi-Fi in support of the insatiable demand for better and faster Wi-Fi.The R850 makes it easy to deliver reliable, secure, ultra-high-performance connectivity to large enterprises, public venues, convention centers, and other challenging environments.

The R850 is our highest capacity dual-band, dual-concurrent Wi-Fi 6 (802.11ax) access point (AP) that supports 12 spatial streams (8x8:8 in 5GHz, 4x4:4 in 2.4GHz). The R850, with OFDMA and MU-MIMO capabilities, efficiently manages up to 1,024 client connections with increased capacity, improved coverage and performance in ultra-high dense environments.
  • Connect More Devices Simultaneously - Improve device performance, by enabling more simultaneous device connections with built-in 8 spatial streams (dual-concurrent, 8x8:8 in 5GHz, 4x4:4 in 2.4GHz), MU-MIMO and OFDMA technology while enhancing non-Wi-Fi 6 client performance. 最大 1,024 までのクライアントをサポート
  • Ultra-High-Density Performance - Provides exceptional end-user experience within stadiums, large public venues, convention centers and school auditoriums with the RUCKUS Ultra-High-Density Technology Suite
  • 高度なセキュリティ - 最新の Wi-Fi セキュリティ標準である WPA3 でセキュリティを強化し、中間者攻撃からの防御を強化。
  • Multi-Gigabit Access Speeds - Optimized multi-gigabit Wi-Fi performance delivered using built-in 5GbE/2.5GbE Ethernet ports to connect to multi-gigabit switches
  • Device Management Options - Manage the R850 with on-premises physical/virtual appliances or the cloud
  • Better Mesh Networking - Minimize complexity by reducing expensive cabling with SmartMesh that dynamically creates self-forming, self-healing mesh networks
  • 最適スループットを自動化 - ChannelFly ダイナミック・チャネル技術では機械学習を採用し、輻輳の最も少ないチャネルを自動検出。帯域でサポート可能な最高のスループットを常に得られます。
  • Wi-Fi を超えるサービス - RUCKUSIoT スイート、Cloudpath セキュリティ、オンボーディング・ソフトウェア、SPoT Wi-Fi ロケーショニング・エンジン、RUCKUS分析を用い、Wi-Fi を超えるサービスをサポートします。

Specifications for RUCKUS R850 Indoor Access Point

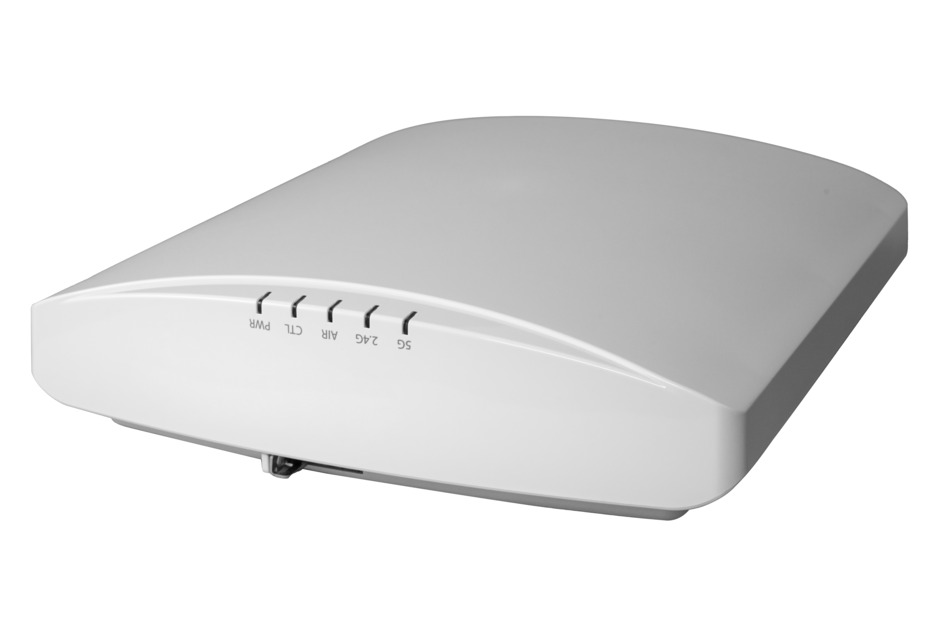

R850 | RUCKUS R850 Indoor Access Point [R850_glamTopDown]
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Indoor access point
Product Brand RUCKUS®
Antenna Patterns, per band 4000+
Antenna Gain Up to 2 dBi
BeamFlex Yes
ChannelFly Yes
Concurrent Users 1024
Controller Support RUCKUS Cloud™ | RUCKUS SmartZone | RUCKUS ZoneDirector | Standalone
Ethernet Ports 1 x 1 / 2.5 / 5 GbE | 1 x 1 GbE
IoT Support IoT Onboard
Number of Radios Dual-Radio
PD-MRC Yes
PHY Rate at 2.4 GHz, maximum 1148 Mb/s
PHY Rate at 5 GHz, maximum 4800 Mb/s
Combined Max PHY Rate 5948 Mb/s
Radio Chains and Streams 8x8:8 SU-MIMO and MU-MIMO
Rx Sensitivity at 2.4 GHz -91 dBm
Rx Sensitivity at 5 GHz -91 dBm
SmartMesh Yes
USB USB 2.0
Venue Type Hospitality | Public Venue | Transportation
Venue Sub-Type Convention Floor | Lecture Hall | Transit Stations | Venue Common Spaces
Wi-Fi Bands Supported 2.4 GHz | 5 GHz
Wi-Fi Generation Wi-Fi 6
Wi-Fi Interface Standard IEEE 802.11a/b/g/n/ac/ax
Operating Temperature 0 °C to +50 °C (+32 °F to +122 °F)
