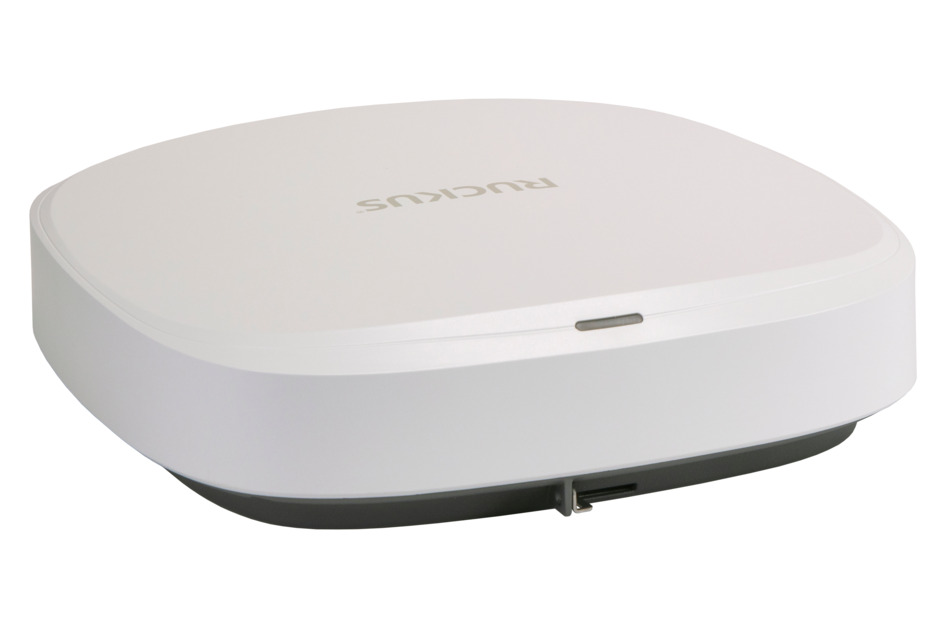

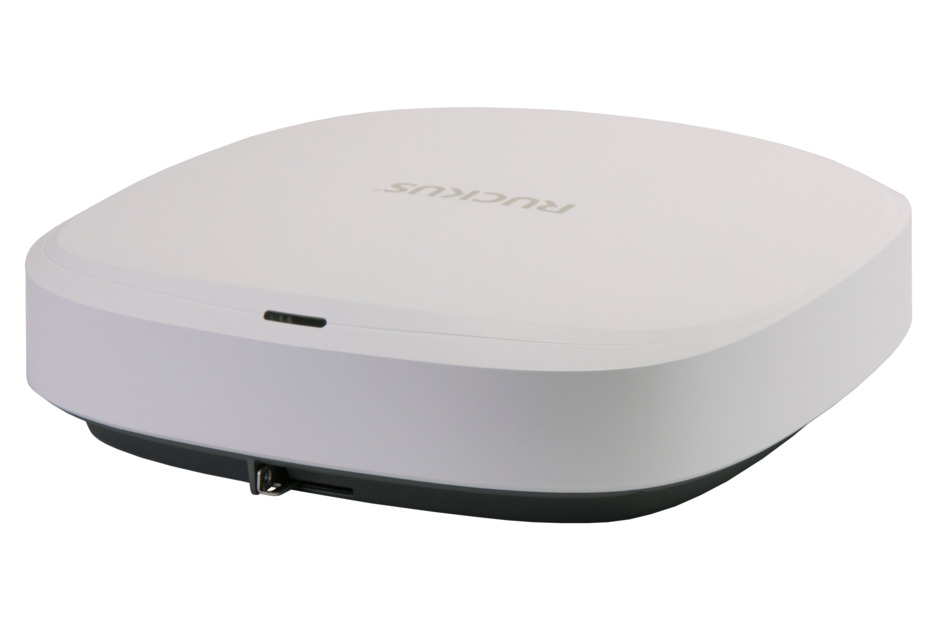

RUCKUS R770 Indoor Access Point

Very-High-Performance Tri-Radio Wi-Fi 7 2x2:2 | 4x4:4 | 2x2:2 Indoor Access Point with 12.22 Gbps max rate and Embedded IoT

RUCKUS R770 Leads the Wi-Fi 7 Revolution

Ultra-fast, low latency wireless connections with improved capacity and efficiency

Wi-Fi 7’s extreme speed, low latency and increased capacity delivers exceptional user experiences and empowers an entirely new class of advanced connected devices and demanding applications. Need a way for wireless devices to support 8K video streams, extended reality (XR) video conferencing, massive social gaming, and more? Wi-Fi 7 is the answer and RUCKUS® brings it to life with the R770 as the first enterprise-class AP supporting Wi-Fi 7 to hit the market.

RUCKUS Wi-Fi 7 implementation is further enhanced by RUCKUS BeamFlex+ patented smart, directional antenna technology and RUCKUS AI to optimize network performance.

Innovation of the year award 2024 RUCKUS Networks Wi-Fi award
R770 wins Innovation of the Year!

We're proud to announce that our AI-driven R770 access point (AP) has been designated as the “Innovation of the Year” by the Wi-Fi Awards.

詳細

Icons_Accelerate

Superior Throughput and Capacity

  • RUCKUS BeamFlex+ on all three bands dramatically improves throughput and range.
  • 4K QAM and 320 MHz wide channels take full advantage of the 6 GHz spectrum and deliver unprecedented throughput
  • 10 Gbps Ethernet port eliminates backhaul bottleneck
  • AI Driven Radio Resources Management simplifies support and enhances network performance
  • Automated Frequency Coordination (AFC) boosts signal strength and range by enabling the use of Standard Power (SP) mode at 6 GHz

Icons-adaptability

Adaptive Resilience

  • Multi Link Operation (MLO) improves reliability by transmitting data across multiple links to prevent interruptions.
  • Better Wi-Fi resiliency through AI driven automated incident classification and recommended remediation steps

Icons_GlobalLeader

Reduced Latency

  • RUCKUS Wi-Fi 7 enhancements including smart QoS mirroring deliver the deterministic latency applications need
  • Wi-Fi 7 new set of QoS features to improve user experience in various scenarios.

Icons-simplicity

Advanced Security Simplified

  • RUCKUS exclusive DPSK3 adds the power of DPSK to WPA3 combining advanced security with the flexibility and ease of use of dynamic passphrase to secure network access.
  • Secure boot and TPM 2.0 offers hardware-level protection against malware and sophisticated cyberattacks

IoT-networking

Built-in Modern IoT Stack

  • Built-in IoT radio for BLE & Zigbee support and USB port for additional expandability
  • Broad Pre-integrated IoT solutions/ecosystems
  • Matter and Thread ready*

Specifications for RUCKUS R770 Indoor Access Point

R770 | RUCKUS R770 Indoor Access Point [RUCKUS R770 Access Point - 0L5A7207]
販売地域 アジア | オーストラリア / ニュージーランド | EMEA | ラテンアメリカ | 北米
製品タイプ 屋内アクセスポイント
製品ブランド RUCKUS®
アンテナ・パターン (バンド当たり) 4000+
アンテナ・ゲイン 最大 4 dBi
BeamFlex 有り
ChannelFly 有り
同時利用ユーザー 1024
コントローラー・サポート RUCKUS One™ | RUCKUS SmartZone | RUCKUS Unleashed™ | スタンドアロン
イーサネット・ポート 1 x 1 / 2.5 / 5 /10 GbE | 1 x 1 GbE
IoT サポート IoT オンボード
無線の数 トライラジオ
PD-MRC 有り
2.4 GHz 時の PHY レート (最大) 689 Mb/s
5 GHz 時の PHY レート (最大) 5765 Mb/s
6 GHz 時の PHY レート (最大) 5765 Mb/s
Combined Max PHY Rate 12220 Mb/s
ラジオチェーンおよびストリーム 2x2:2 (2.4 GHz) 4x4:4 (5 GHz) 2x2:2 (6 GHz)
2.4 GHz における Rx 感度 -97 dBm
5 GHz における Rx 感度 -100 dBm
6 GHz における Rx 感度 -96 dBm
SmartMesh 有り
USB USB 2.0
ベニューの種類 教育 | ホスピタリティ | MDU | 製造 | オフィス / リテール | 公共ベニュー
ベニューの種類(下位分類) 会議フロア | 講堂 | 中継基地局 | 施設会場の共用スペース
サポートされている Wi-Fi バンド 2.4 GHz | 5 GHz | 6 GHz
Wi-Fi 生成 Wi-Fi 7
Wi-Fi インターフェース規格 IEEE 802.11a/b/g/n/ac/ax/be
運用温度 0 °C ~ +50 °C (+32 °F ~ +122 °F)
