RUCKUSICX8200 スイッチ

Base Product

Entry-Level+ Enterprise-Class Stackable Access Switch

Configure Product Variants

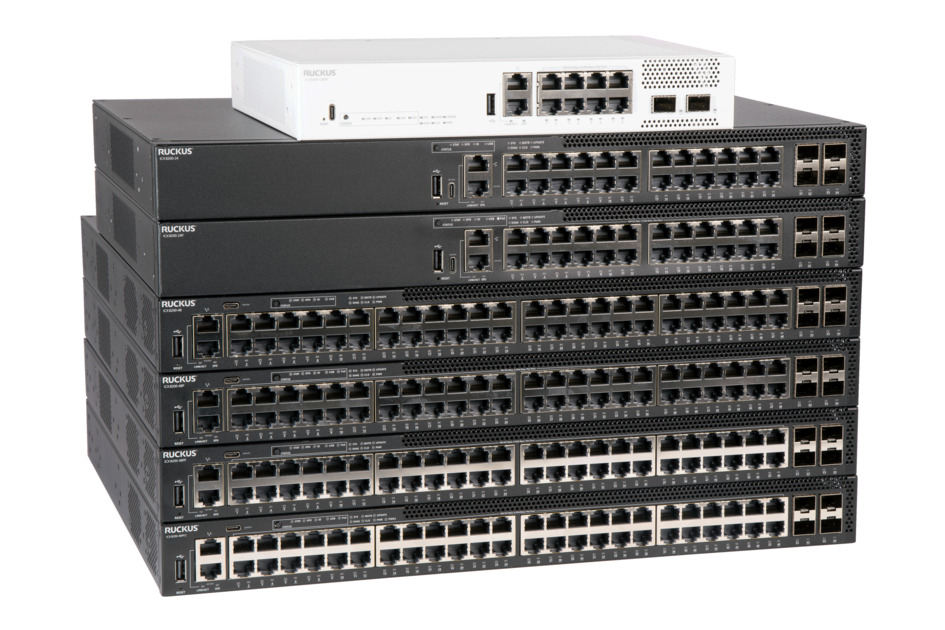

RUCKUS ICX 8200 Switches Features

The RUCKUS ICX 8200 Switch series is specifically designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price without compromising performance and reliability.
The RUCKUS ICX 8200 raises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, cost- effectiveness, and “pay as you grow” scalability of stackable solution.
  • Maximum flexibility and connectivity options
    Gigabit, Multigigabit edge ports and Fiber to the Room, optimized for latest generation Wi-Fi 6/6E/7 AP deployments with multigigabit ports. 1/2.5/5/10 Gbps Copper ports, 1G SFP and 10G SFP+ fiber ports
  • Power next generation APs and PoE devices
    PoE+ 802.3at, 30W per port on all ports. PoE++ 802.3bt, 60/90W on multigigabit ports and up to 1480W PoE budget with two power supplies
  • 25 GbE uplinks/stacking offers maximum performance and future-proofing.
    Eliminate network bottlenecks with up to 8x 1/10/25GbE SFP28 fiber ports for uplink and/or stacking
  • Advanced L3 routing delivers network design flexibility
    IPv4 and IPv6 L3 routing. Static routes, RIP, OSPF, VRRP, VRF, GRE, PIM, PBR
  • Enhanced availability
    Redundant, load-sharing hot-swap power supplies and fans on specific models
  • Services and Support Included
    3 years of remote TAC support included with every ICX 8200 model and Limited lifetime warranty ​​​​​​​​​​​​​
  • Enhanced Security and data privacy
    VXLAN* support for advanced network segmentation and data confidentiality

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product VariantsClear

Configure and display product variants of RUCKUS ICX 8200 Switches by selecting options

読み込んでいます……
RUCKUS ICX 8200-24 RUCKUS ICX 8200-24
Entry-Level+ Access 24 Ports 1G Switch
RUCKUS ICX 8200-24F RUCKUS ICX 8200-24F
Entry-Level+ Access 24 Ports 1G Fiber Switch
RUCKUS ICX 8200-24FX RUCKUS ICX 8200-24FX
Entry-Level+ Access 24 Ports 10G Fiber Switch
RUCKUS ICX 8200-24P RUCKUS ICX 8200-24P
Entry-Level+ Access 24 Ports 1G PoE Switch

Specifications for RUCKUS ICX 8200 Switches

ICX8200 | RUCKUS ICX 8200 Switches [0L5A6069 - ICX-8200-stacked - LF]
販売地域 アジア | オーストラリア / ニュージーランド | EMEA | ラテンアメリカ | 北米
製品タイプ イーサネットスイッチ
製品ブランド RUCKUS®
Switching Capacity, maximum 720 Gb/s
1 GbE RJ45 Ports, quantity, maximum 48
1 GbE SFP Ports, quantity, maximum 52
10 GbE SFP+ Ports, quantity, maximum 24
1/2.5 GbE RJ45 Ports, quantity, maximum 24
1/2.5/5/10 GbE RJ45 Ports, quantity, maximum 4
10 GbE RJ45 Ports, quantity, maximum 4
25 GbE SFP28 Ports, quantity, maximum 8
PoE Power Budget, maximum 1480 W
Switches per Stack, maximum 12
Aggregate Stack Bandwidth, maximum 1200 Gb/s
PoE/PoE+ 有り
Stacking 有り
sFlow 有り
Layer 3 (STATIC, RIP, OSPF) 有り
OpenFlow with Hybrid Port Mode 有り
Campus Fabric Technology 無し
Redundant Power Option 有り
Hot Swap Internal Power Supplies & Fans 有り
802.3bt2 (90 W PoE Power per Port) 有り
VRF 有り
IPsec VPN, with service module 無し
MACsec 無し
BGP 無し
Reversible Airflow Option 無し
VXLAN 有り
Multi Chassis Trunking (MCT) 無し
