RUCKUSICX7150 スイッチ
Base Product
Entry-Level Enterprise-Class Stackable Access Switch
Configure Product Variants
RUCKUS ICX 7150 Switches Features
The RUCKUS ICX 7150 combines enterprise-class switching features with high performance at entry-level price. The ICX 7150 series of switches are available in three formats: standard, Z-Series with multi-gigabit support, and compact. The switch can operate in fanless mode outside of the wiring closet to provide silent operation for classrooms, hospitality suites, retail sites, hospitals or other noise sensitive environments.
The ICX 7150 is available in 8,10,12, 24 and 48 port 10/100/1000 Mbps models with 1/10 GbE dual-purpose uplink/stacking ports, and full PoE/PoE+ support. The ICX 7150-48ZPand ICX 7150-C10ZP offers multi-gigabit ports, each with PoH up to 90 watts,. The ICX 7150 series supports stack-level high availability and stack level ISSU (In Service Software Upgrade) to ensure service resiliency and business continuity.
The ICX 7150 is available in 8,10,12, 24 and 48 port 10/100/1000 Mbps models with 1/10 GbE dual-purpose uplink/stacking ports, and full PoE/PoE+ support. The ICX 7150-48ZPand ICX 7150-C10ZP offers multi-gigabit ports, each with PoH up to 90 watts,. The ICX 7150 series supports stack-level high availability and stack level ISSU (In Service Software Upgrade) to ensure service resiliency and business continuity.
- PoE/PoE+/PoH to power 802.11ac Wi-Fi products
- Stack level high availability and stack level ISSU to improve network service resiliency
- sFlow-based network monitoring
- SDN-enabled with OpenFlow support
- Easy transition to RUCKUS Campus Fabric for network automation and management simplicity Plug-and-play operations for powered devices via LLDP and LLDP-MED protocols
- Auto-configuration ensures error free configuration and accelerates deployment
- Hot-insertion and removal of stack members simplifies operations
- Up to 12 switches per stack, up to 10km between stacked switches
- Up to 8 x 10 GbE ports for stacking or uplinks
- Software licensing upgrade - 1 GbE to 10 GbE of uplink/stacking ports
- Flexible stacking adds capacity throughout the network without increasing the management load
- Works seamlessly with RUCKUS Wi-Fi access points
- RUCKUS SmartZone and RUCKUS Cloud support delivers unified wired & wireless management
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
Specifications for RUCKUS ICX 7150 Switches

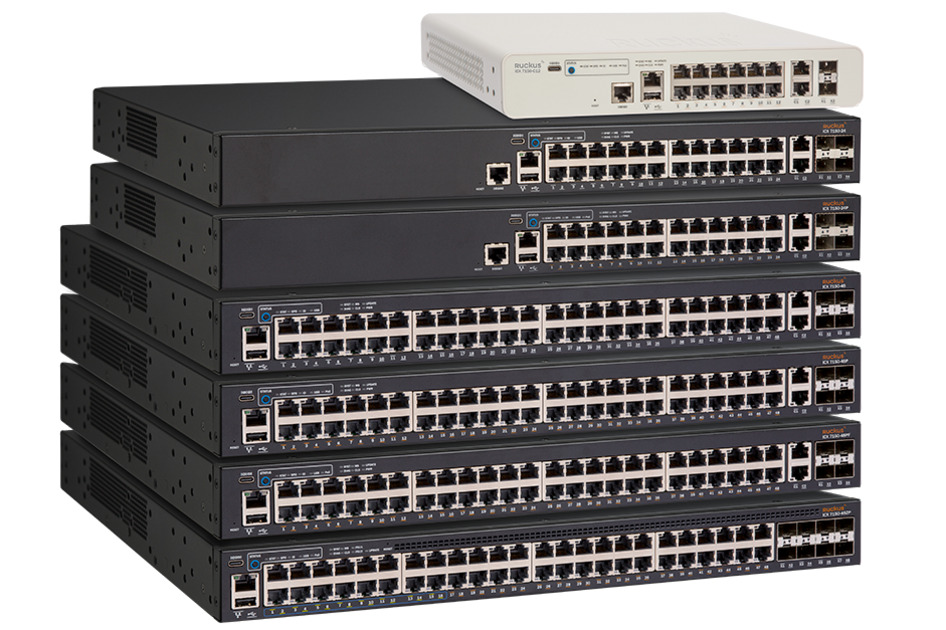

![ICX7150 | RUCKUS ICX 7150 Switches [ICX7150-STACK-FRONT]](https://www.ruckusnetworks.com/globalassets/digizuite/966224-icx7150-stack-front.png/medium?mediaformatid=50103)
製品分類
| 販売地域 | アジア | オーストラリア / ニュージーランド | EMEA | ラテンアメリカ | 北米 |
| 製品タイプ | イーサネットスイッチ |
| 製品ブランド | RUCKUS® |
一般仕様
| Switching Capacity, maximum | 304 Gb/s |
| 1 GbE RJ45 Ports, quantity, maximum | 48 |
| 1 GbE SFP Ports, quantity, maximum | 24 |
| 10 GbE SFP+ Ports, quantity, maximum | 8 |
| 1/2.5 GbE RJ45 Ports, quantity, maximum | 16 |
| PoE Power Budget, maximum | 1480 W |
| Switches per Stack, maximum | 12 |
| Aggregate Stack Bandwidth, maximum | 480 Gb/s |
| PoE/PoE+ | 有り |
| Stacking | 有り |
| sFlow | 有り |
| Layer 3 (STATIC, RIP, OSPF) | 有り |
| OpenFlow with Hybrid Port Mode | 有り |
| Campus Fabric Technology | 有り |
| Redundant Power Option | 有り |
| Hot Swap Internal Power Supplies & Fans | 有り |
| 802.3bt2 (90 W PoE Power per Port) | 有り |
| EEE (Energy Efficient Ethernet) | 有り |
